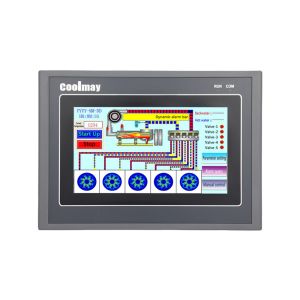

7 Inch Integrated PLC Touch Panel 24vdc 8 Bit Encryption RoHS Approved
Touch Panel PLC Integrated HMI All In One 24vdc Input 7 Inch Screen Pressure Voltage Industrial Controller
Coolmay touch panel PLC integrated applied upper computer
programming software compatible with Works 2, supports Ladder
diagram and SFC language. It is powerful with high processing speed
and compatible with FX3G/ FX3U/ FX3S PLC. Coolmay PLC adopted
military-level 32-bit CPU, which is faster and more adapted to
industrial environment of high electromagnetic interference. The
PLC is special encryption, preventing illegal reading thoroughly.
It is 8-bit encryption, 12345678 as password can thoroughly prevent
reading of ladder logic program.
Specifications
| HMI/PLC | Model | EX3G-70KH-44MRT-16AD8DA-V-A4-485P-S (4T16R) |
| Display | Dimension | 226*163*35.6mm |
| Resolution | 800*480 pixels | |
| Memory | RAM | 64MB |
| ROM | 128MB | |
| CPU | ARM9 400MHz | |
| I/O | DI/DO | 24DI/20DO |
| DO type | 4 transistor and 16 relay outputs (Relay output: max load 5A/ transistor output: max load 500mA) | |
| Analog I/O | 16AD/8DA | |
| AI type | 0~10V | |
| AO type | 4~20mA | |
| Connection | HMI | 1 HMI download port,1 USB 2.0 port |
| PLC | 1 Mini type B USB port, 1 Rs232 port, 1 RS485 port | |
| Software | HMI | CoolMayHMI HMI programming software |
| PLC | Compatible with Mitsubishi GX Developer 8.86 and WORKS 2 |
