| Brand Name : | Coolmay |
| Model Number : | CX3G-48M |
| Certification : | CE |
| Price : | Details Need To Be Negotiated |
| Payment Terms : | TT,Paypal, Western Union, Credit Card |
| Supply Ability : | 15000 Units Per Week |
| Delivery Time : | 3-5 Days After Payment Confirmed |

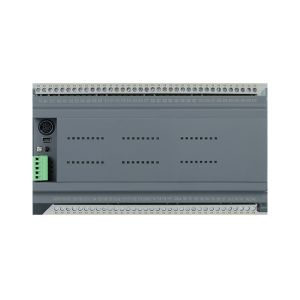

Coolmay CX3G-48M PLC Programmable Logic Controller 24DI 24DO Servo Motor Controller
Features
Specification
| Model | CX3G-48M |
Dimension | 200*90*36mm |
Cutout size | 192*99mm |
Installation | Fixed hole installation and DIN-Rail (35mm ) |
I/O level | Input: Passive NPN, public terminal isolated Transistor output: NPN Relay output: Normally open dry contact |
Digital I/O | 24DI/24DO |
DO type | Relay(MR) or transistor(MT) or mixed(MRT) (Relay output: max load 5A/ transistor output: max load 500mA) |
High speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ
60KHz + 1 AB phase 10 KHz |
High speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz High-speed counting + high-speed pulse < 480KHz |
Analog I/O (optional) | 12AI/8AO |
AI type (optional) | Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple / PT100/ PT1000/ NTC10K/
NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0-20mA/ 4-20mA/ -5V~5V/ -10V~10V |
AO type (optional) | 0~10V/ 0-~5V/ 0~20mA/ 4~20mA -5~5V/ -10~10V (2DA for 1 minus voltage) |
Default | 1 Mini type B USB programming port, 1 RS232 programming port
(Interface terminal is mouse female port with 8 holes), 2 RS485 COM
ports |
Optional | Default 2 RS485 COM ports can be customized as 1 RS485, 1 RS232 COM ports, or 1 RS485 COM port, 1 CAN (2.0A/B), or 1 RS232 COM port, 1 CAN (2.0A/B) CX3G-48M can add Ethernet port. |
Software | Compatible with WORKS 2 |
