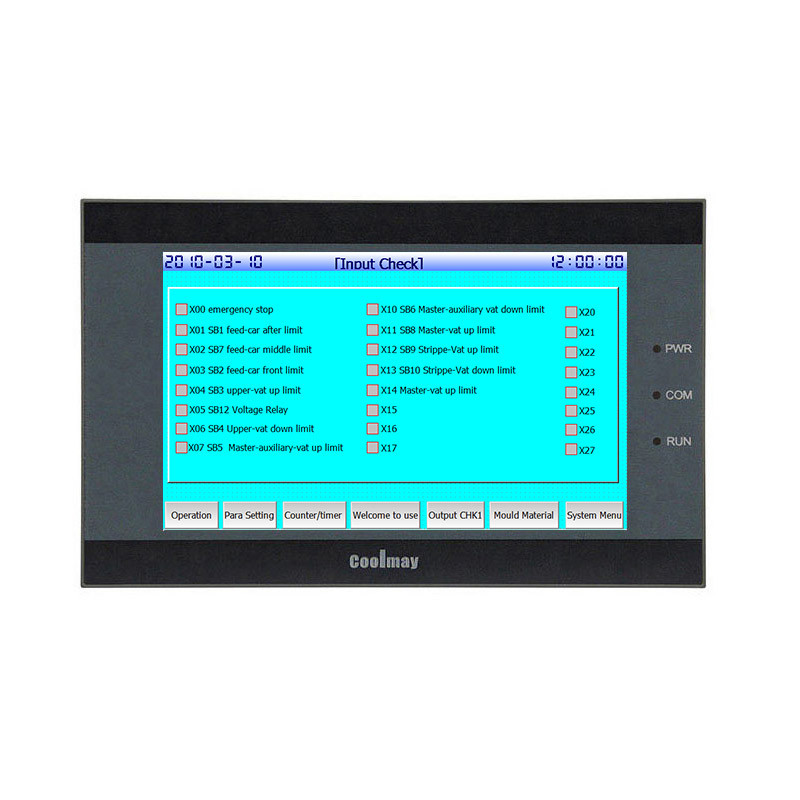

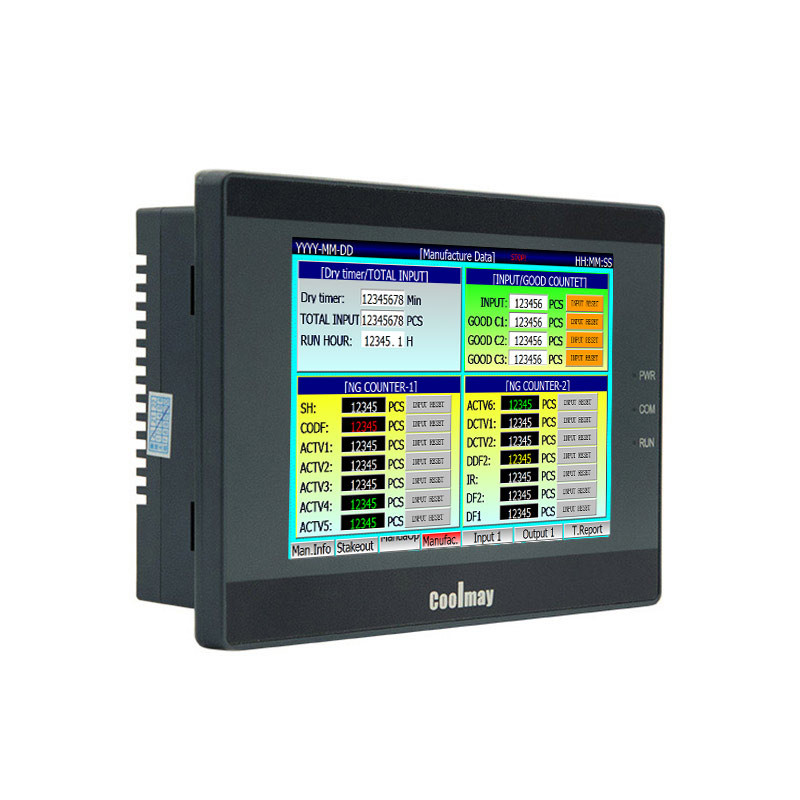

5 Inch Touch Screen HMI PLC Combo 32 Bit HMI PLC Controller Max 4AI/2AO

Ask Lasest Price
Brand Name :	Coolmay
Model Number :	QM3G-50FH
Certification :	CE
Price :	Details Need To Be Negotiated
Payment Terms :	T/T,Paypal,Western Union,Credit Card
Supply Ability :	1500 pcs per week
Delivery Time :	within 3 working days after payment confirmed

Add to Cart

Product Details
Company Profile

5 Inch Touch Screen HMI PLC Combo 32 Bit HMI PLC Controller Max 4AI/2AO

5 Inch Touch Screen HMI PLC Combo 32 Bit HMI PLC Controller HMI Plc All In One

Quick Detail:

Integrated PLC,HMl,digital I/O(DW/DO), analog I/O(AD/DA), high speed functions,etc..
Compatible with FX3G/FX3U/FX3S PLC,fast operation.
Up to 12DI/12DO, 4AD/2DA
Default 2 PLC programming ports, 1 HMl download port.
Supports optional one or two Rs485, CAN, WIFl, network port on PLC, and supports optional Rs232,Rs485,network port (under development)on HMI.
Supports multi-channel high speed count and pulse functions.

HMI part

size of HMI: 5 inch

cutout size: 143*86mm

Resoution:800*480

RAM:NOR Flash 8MB

ROM:64MB

CPU:32bit CPU 408MHz

com ports:1*type C download port, 1*RS232

Software: mView software

PLC part

Digital I/O: Max 12DI/12DO

I/O level: default NPN input and output, MR can be customized PNP input PNP output, MT can be customized PNP input and NPN output

DO type: transistor(MT) or relay(MR) or mixed(MRT)

Analog I/O(optional): max 4AI/2AO

AI(Optional):

Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed

AO(Optional):

0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/-5~5V/ -10~10V (2AO for 1 minus voltage)

com port:1*mini USB,1*RS485,1*RS232

software: WORKS 2/ GX developer 8.86

We are committed to providing you with a variety of solutions (Communication Port, Analog, Temperature,Weighing, etc.)

Model	QM3G-50FH
Dimension	1509636mm
Cutout size	143*86mm
Power Consumption	5-7W
HMI
Feature	60K-color resistive touch screen, supports portrait display
Type	5.0"TFT
Display size	108*65mm
Resolution (pixels)	800*480
RAM	NOR Flash 8MB
ROM	64MB
CPU	32bit CPU 408MHz
Default	Type-C HMI download port (can download PLC program through the USB penetrating function),RS232port
software	mView Software
PLC
I/O	Max 12DI/12DO
I/O level	Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact
DO type	Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT) (Relay output: max load 5A/ transistor output: max load 500mA)
High-speed counting	Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz
High-speed pulse	8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz
Default programming port	1*Type C port, 1 RS232
Optional COM port	1 RS485 or 2 RS485 COM ports (one is changed from the default RS232 port)
Analog I/O (optional)	Max 4AI/2AO
AI type (optional)	Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed
AO type (optional)	0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/
Software	Compatible with Mitsubishi GX Developer 8.86 and WORKS 2

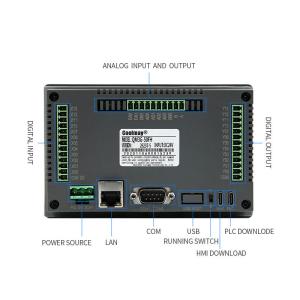

Detail Com Ports:

RFQ:

Q: Do you provide a cargo warranty?
Yes, we provide warranty on all goods.

Q: Can Coolmay provide technical support?
A: We have been in this field for more than 12 years. If you have
any questions, please contact us and we will provide advice from
our engineers to help you solve the problem.

Q: Does Coolmay keep inventory or trade only?
A:We have a large number of warehouses. Keep a large amount of
goods in the warehouse to ensure fast delivery.

Q: What is your MOQ?
A: We provide you with a small order quantity for each item,
depending on your specific order!

Q: How do you make a long-term relationship with our business?
A:1. We maintain good quality and competitive prices to ensure the
interests of our customers;
2. We respect every customer as our friend, we do business in good
faith, and make friends with them, no matter where they come from.
